When it comes to producing large batches, it is not just high volumes that are crucial. Equally important are precise process control, flexible temperature control options and reliable equipment that can be adapted to different requirements.

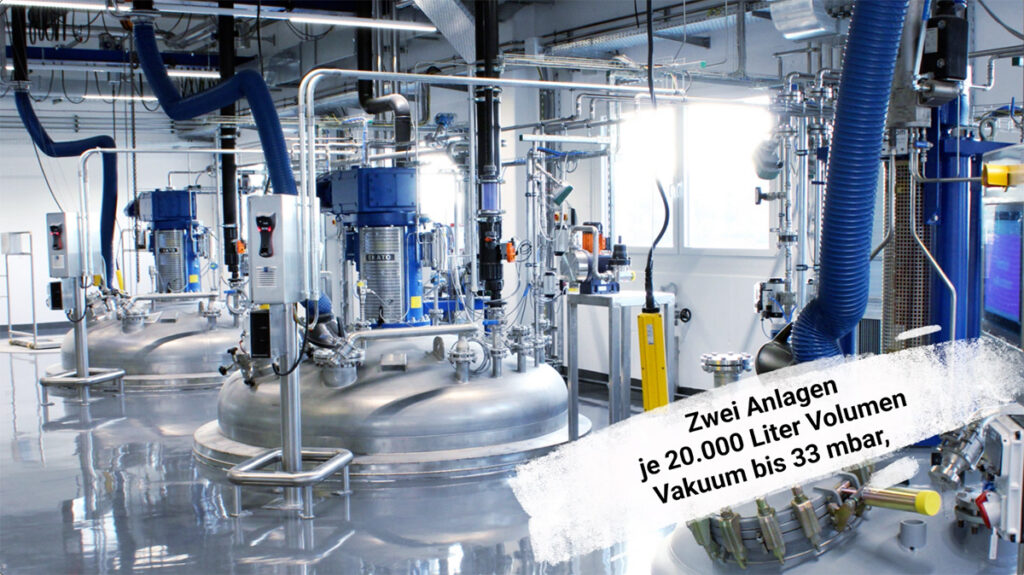

With two plants, Ursa-Chemie has a reactor with a capacity of 20,000 litres, enabling it to carry out even particularly large batches efficiently and under controlled conditions.
A capacity of 20,000 litres for large production runs
The systems are manufactured from austenitic chromium-nickel stainless steel 1.4571 / AISI 316Ti. Thanks to its titanium stabilisation, the material offers good corrosion resistance and is therefore suitable for a wide range of different chemical processes.
A high-performance 15 kW Viscoprop agitator is available for mixing. This ensures that even larger batches can be processed reliably and uniformly.
Flexible process conditions
The systems offer a wide range of options for targeted process control. Inerting with nitrogen is possible and can be particularly important in the case of oxygen-sensitive or reactive processes.
The reactor also offers a wide range of temperature control options: temperatures of up to 280 °C are possible. In addition, the process can be carried out under vacuum down to 33 mbar.
A metering pump with a capacity of up to 1,000 litres per hour is available for the controlled addition of liquid components.
From production to bottling
Once the production process is complete, there are various options available for bottling. The plants can, amongst other things, be used for
- IBCs,
- Barrels,
- Canister,
- Folding container with inner liner
be bottled.
Customisable features
Depending on the process requirements, the systems can be fitted with various additional components. These include, for example, a range of filter options.
It is also possible to load directly into a tanker lorry.
The use of a disperser is, in principle, also a possibility. However, a suitable connection is not provided as standard and would first need to be technically assessed and tested for the specific application.
The permissible operating pressure for the systems is 6 bar.
Large-scale projects, individually planned
Whether it’s large production volumes, demanding temperature conditions or specific process control requirements – the plants provide a versatile basis for the manufacture of a wide variety of chemical products.
At Ursa-Chemie, the focus is not solely on technical equipment. What is crucial is the combination of many years’ experience in contract chemical manufacturing, state-of-the-art plant technology and a bespoke approach tailored to our customers’ requirements.
Are you planning a large-scale production run and would like to check whether we have a suitable facility in-house? Please feel free to get in touch. Together, we’ll assess the technical possibilities and find the right solution for your production run.
